Unleashing High-Speed Signal Transfer

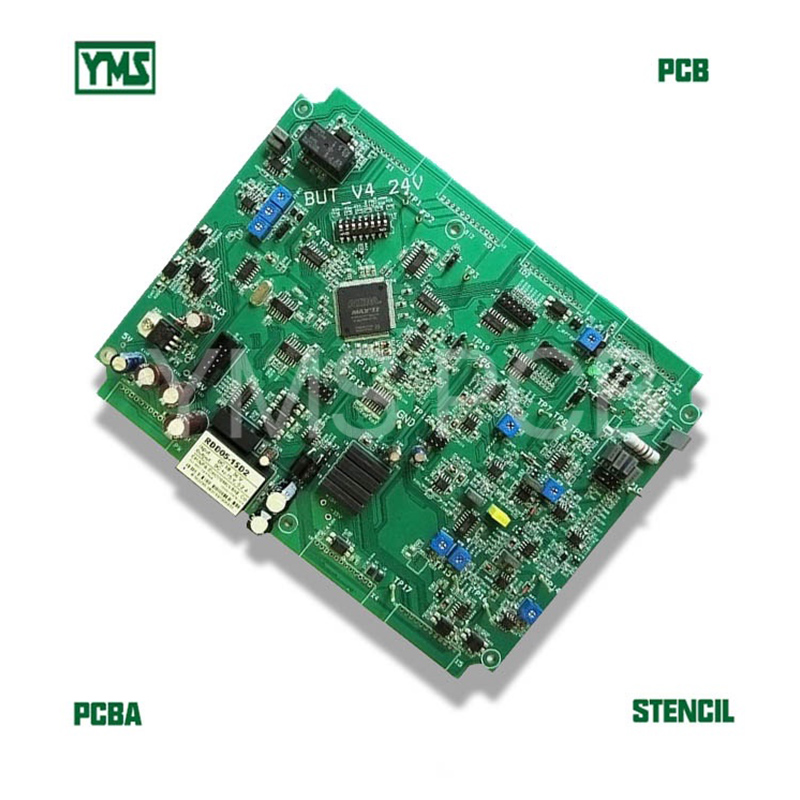

In today's fast-paced electronic world, the demand for high-speed signal transmission is greater than ever before. The RTS Series Multi-Layer PCB/PCBA from Ming Zheng Hong Electronics Co. epitomizes this demand, offering cutting-edge solutions designed to cater to the evolving needs of modern technology.

Exceptional Design and Material Quality

The RTS series utilizes an sophisticated 8-layer FR-4 TG170 material, renowned for its outstanding thermal stability and flame-retardant properties. This ensures unrivaled performance during high-speed operations, making it a prime choice for applications such as high-frequency cameras and safety monitoring systems.

Precise Technical Specifications

What sets the RTS series apart is its meticulous attention to detail in its construction:

• Outer layers are designed with 1OZ copper thickness, ensuring effective signal transmission.
• Inner layers boast the same 1OZ copper thickness, perfect for maintaining high reliability.
• The minimum hole size is set at 0.2mm, and the minimum line width/spacing at 5mil (0.125mm).

Advanced Surface Treatments

To provide a dependable and corrosion-resistant electrical connection, our PCB/PCBA options utilize the ENIG (Electroless Nickel Immersion Gold) plating technology. This advanced treatment ensures longevity and stability in electronic devices.

Certification and Compliance

Each product in the RTS series adheres to the IPC-II standards, guaranteeing high quality and uniform performance across the board. Our commitment to excellence ensures our customers receive only the best.

Comprehensive One-Stop Service

We pride ourselves on offering a complete service solution that covers:

• Surface Mount Technology (SMT)
• Dual Inline Package (DIP) component soldering
• Material procurement
• Final product functional testing
• Complimentary stencil provision

Expanding Applications Across Industries

The RTS Series is not just a standalone product; it spans various applications including:

• High-frequency devices such as cameras and data communication systems.
• Security monitoring devices that require rapid signal processing capabilities.
• Advanced medical instruments and communication devices.
• Industrial automation systems where reliability is paramount.
• New energy and automotive sectors, where innovative solutions are a necessity.

The RTS Series Multi-Layer PCB/PCBA solutions stand at the convergence of innovation and reliability, ready to meet the stringent demands of today's technological landscape.
