Product Introduction

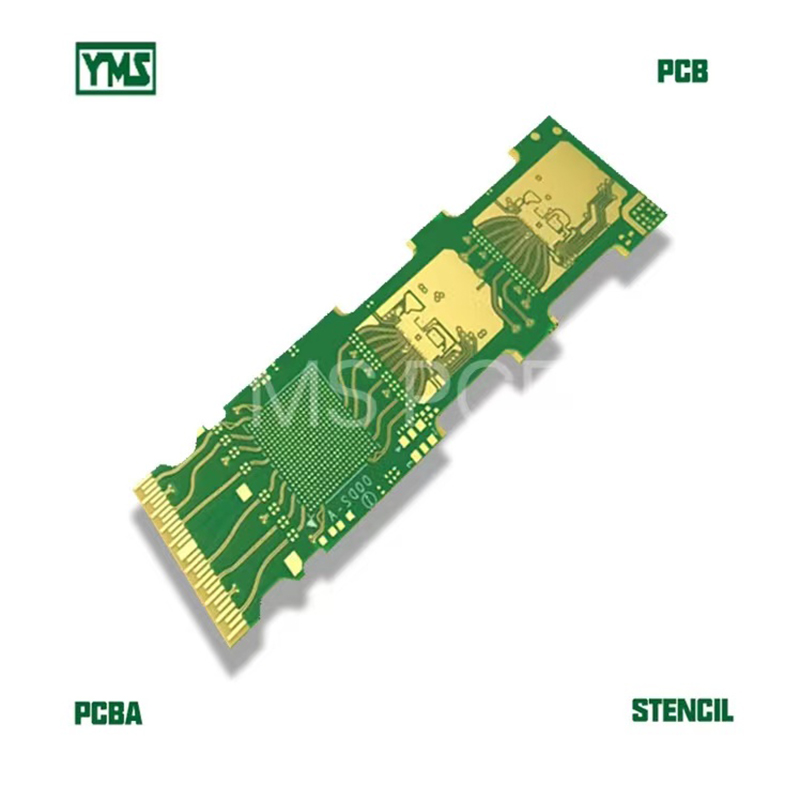

Mingzhenghong Electronics Co., Ltd. is proud to launch a high-durability hard gold edge connector eight-layer PCB . This PCB is made of high-grade FR-4 TG 140 material with a thickness of 1.0mm±0.1mm, ensuring excellent performance. We have precise impedance control technology to keep electronic signals stable during high-speed transmission, fully meeting the needs of modern electronic devices.

Features

1. Precision resistance control technology: ensure stable transmission of electronic signals and meet high-speed signal requirements.

2. High-end materials and craftsmanship: Combining electroplated nickel gold with selective hard gold "50u" treatment to enhance plug-in durability.

3. Optimize design parameters: Provide a minimum line width/spacing of 0.13mm/0.15mm and support a minimum drilling of 0.2mm to ensure high reliability of the product.

4. Environmental certification guarantee: Comply with ISO9001, ISO14001 certification, and follow environmental standards such as RoHS and REACH.

Scope of application

This eight-layer PCB can be widely used in several key areas, including:

• Automotive electronics: Applicable to key electronic devices such as automotive internal control systems, navigation, multimedia, etc.
• Intelligent communication equipment: Meet the circuit board requirements of high-speed communication products such as smart phones, base stations, and network equipment.
• Industrial control systems: suitable for application scenarios with high protection requirements, such as automation control devices, mechanical operation panels, etc.
• High-definition LED and power supply: Provide a stable circuit base for LED lighting and high-performance power modules.
• Medical devices: Support precision medical instruments and monitoring equipment to meet the high standards of the industry.

Our products have passed multiple industry standard certifications to ensure their excellent performance in harsh environments such as high-frequency plugging and unplugging. If you are interested in our high-durability hard gold edge connector eight-layer PCB, please feel free to contact us!

There is no doubt that Mingzhenghong Electronics Co., Ltd.'s high-durability hard gold-edged connector eight-layer PCB is the best choice to enhance the performance of your products. We look forward to cooperating with you to create a better future together!
