Leading the technology pioneer of high-frequency communication

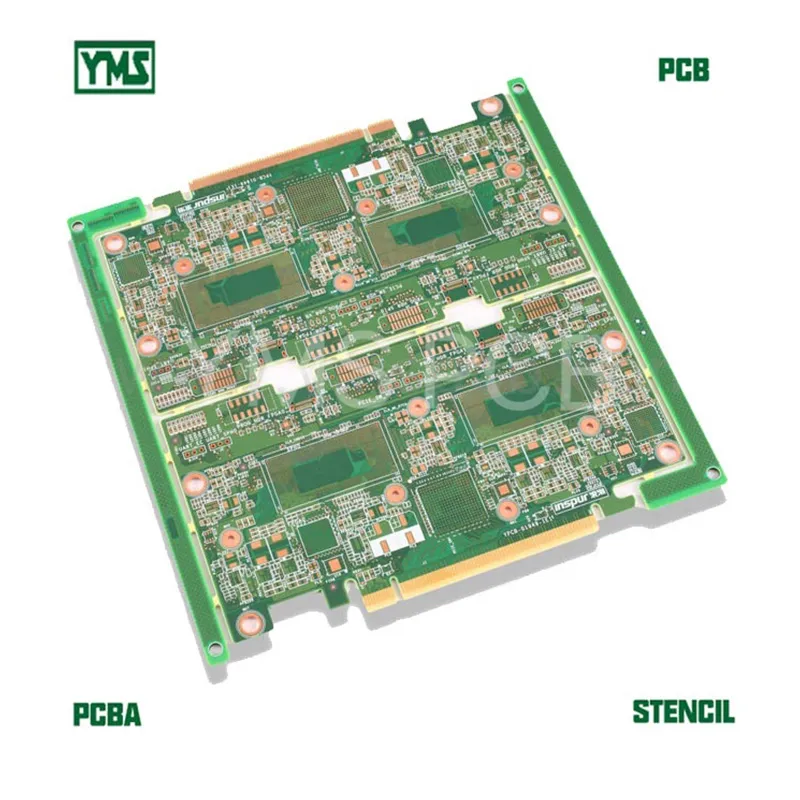

In the current high-frequency communication industry, signal stability and accuracy are crucial. The 24-layer high-frequency and high-speed PCB circuit board launched by Mingzhenghong Electronics Co., Ltd. uses high-performance Isola 370HR material to ensure excellent electrical performance and is designed to meet the needs of high-frequency applications.

Key Features at a Glance

• Supports 50 ohm single-ended and 100 ohm differential pair impedance control to ensure consistency and accuracy of signal transmission.
• ENIG (gold layer thickness 5 micro inches) surface treatment is used to ensure the reliability of the solder joints and long-term anti-oxidation performance.
• The board thickness (1.6mm±0.16mm) and copper thickness (1 ounce for outer layer/half ounce for inner layer) are strictly controlled to meet various delicate electrical requirements.
• It adopts small aperture design (minimum 0.2mm) and high-precision line width/spacing (0.075mm/0.075mm) to meet the needs of complex circuits.
• Strictly follow international IPC , RoHS , REACH and other standards to ensure product quality meets global market standards.

Wide range of applications

This product has a wide range of applications, covering high-frequency transmission and data processing needs in the telecommunications industry, including:

• Base stations, routers, switches and other key communication equipment.
• Enterprise-class servers and storage systems that have high requirements for signal integrity and electrical performance.
• Complex electronic devices in high-end medical, military communications and aerospace fields.
• Emerging 5G applications , including infrastructure and ancillary equipment for high-frequency signal processing.

Conclusion

With the continuous development of science and technology, the 24-layer high-frequency and high-speed PCB circuit board of Mingzhenghong Electronics Co., Ltd. will surely help customers meet market demand and achieve technological innovation in telecommunications and other high-frequency fields. We look forward to working with you to create a bright future together.
